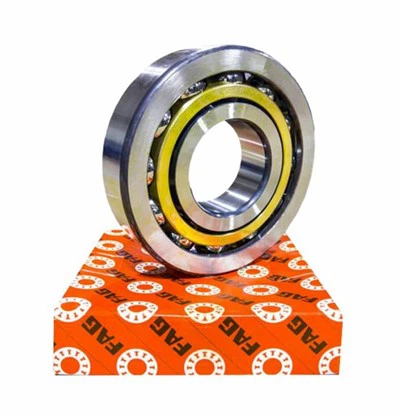

Ar gael 709/600- mp-p 5- uo Bearings pêl cyswllt onglog
Nhrosolwg
Mae Bearings pêl cyswllt onglog gyda phrif ddimensiynau safonol yn cyfateb i DIN 628-1.
Mae goddefiannau dimensiwn a geometregol y berynnau safonedig yn cyfateb i ddosbarth goddefgarwch PN i din 620-2.
Rhes sengl 709 ..- Cyfres AS gyda chawell pres mp-solet, dan arweiniad pêl; Mae gan y cawell pres hwn gryfder da ac ymwrthedd gwres a all gadw'r strwythur dwyn yn sefydlog ar gyflymder uchel ac addasu i'r gwres a gynhyrchir gan y dwyn ar gyflymder uchel.Contact Angle 30 gradd; math agored; Gellid defnyddio'r dwyn hwn ar dymheredd gweithredu o –30 gradd i radd +200 (sefydlwyd dimensiwn ei gylch hyd at 200 gradd) .p5 dosbarth goddefgarwch. Gallai wrthsefyll llwythi echelinol rheiddiol ac un cyfeiriadol, gan ddwyn nid grŵp dwyn heb eu iro.
Diamedr turio {{0}} mm; Diamedr y tu allan -800 mm; lled -63 mm; Màs -92. 2 kg; cr =550 kn; c0r =1470 kn; Cyflymder cyfyngu =1120 1/min; cyflymder cyfeirio 550 1/min.
Fanylebau
| Dimensiynau a Thaflenni Data Technegol | |
| Rhan rhif. | 709/olle |
| Brand | Brand ffag wedi'i wneud yn yr Almaen/brand SDVV wedi'i wneud yn Tsieina |
| Prif ddimensiynau | 600x800x63 mm |
| d | 600 mm |
| D | 800 mm |
| B | 63 mm |
| rmin | 5 mm |
| D1 | 721.7 mm |
| Angle Cyswllt | 30 gradd |
| da min. | 618 mm |
| Da max. | 782 mm |
| ra max. | 4 mm |
| Cr | 550 kn |
| C0r | 1470 kn |
| M | 92.2 kg |
Codau dwyn tebyg 709/600- mp; ac mae 709/600- mp-ul Bearings ar gael.
Tabl Rhestr Bearings Rhan Fach
| Nu218ema | 90.000 x160.000x 30.000 |
| NJ218ema | 90.000 x160.000x 30.000 |
| Nu2218ema | 90.000x 160.000 x40.000 |
| NJ2218ema | 90.000x 160.000 x40.000 |
| Nup2218ema | 90.000x 160.000 x40.000 |
| Nu318ema | 90.000 x190.000x 43.000 |
| NJ318ema | 90.000 x190.000x 43.000 |
| Nu2318ema | 90.000x 190.000x 64.000 |
| NJ2318ema | 90.000x 190.000x 64.000 |
| Nu219ema | 95.000x 170.000 x32.000 |
| Nu2319ema | 95.000 x200.000 x67.000 |
| NJ2319ema | 95.000 x200.000x 67.000 |
| Nu220ema | 100.000x 180.000 x34.000 |
| NJ220ema | 100.000 x180.000x 34.000 |
| Nu2220ema | 100.000 x180.000x 46.000 |
| NJ2220ema | 100.000x 180.000x 46.000 |
| Nu320ema | 100.000x 215.000 x47.000 |
| NJ320ema | 100.000 x215.000 x47.000 |
| Nu2320ema | 100.000 x215.000x 73.000 |
| NJ2320ema | 100.000 x215.000x 73.000 |
| Nu222ema | 110.000x 200.000 x38.000 |
| NJ222ema | 110.000 x200.000x 38.000 |
| Nu2222ema | 110.000 x200.000x 53.000 |
| NJ2222ema | 110.000x 200.000 x53.000 |
| Nu322ema | 110.000x 240.000 x50.000 |
| NJ322ema | 110.000 x240.000x 50.000 |
| Nu2322ema | 110.000 x240.000x 80.000 |
| NJ2322ema | 110.000 x240.000x 80.000 |
| NU1024MA | 120.000x 180.000x 28.000 |
| Nu224ema | 120.000x 215.000 x40.000 |
| NJ224ema | 120.000x 215.000 x40.000 |
| Nu2224ema | 120.000 x215.000x 58.000 |
| NJ2224ema | 120.000x 215.000x 58.000 |
| Nu324ema | 120.000x 260.000 x55.000 |
| NJ324ema | 120.000x 260.000 x55.000 |
| Nu2324ema | 120.000 x260.000x 86.000 |
| NJ2324ema | 120.000 x260.000 x86.000 |
| Nu1026ma | 130.000x 200.000x 33.000 |
| Nu226ema | 130.000 x230.000 x40.000 |
| NJ226ema | 130.000 x230.000x 40.000 |
| Nu2226ema | 130.000x 230.000x 64.000 |
| NJ2226ema | 130.000x 230.000x 64.000 |
| Nu326ema | 130.000x 280.000x 58.000 |
| NJ326ema | 130.000x 280.000x 58.000 |
| Nu2326ema | 130.000x 280.000 x93.000 |
| NJ2326ema | 130.000x 280.000 x93.000 |
| Nu1028ma | 140.000x 210.000 x33.000 |
| Nu228ema | 140.000 x250.000 x42.000 |
| NJ228ema | 140.000x 250.000x 42.000 |
| Nu2228ema | 140.000x 250.000x 68.000 |
| NJ2228ema | 140.000 x250.000 x68.000 |
| Nu328ema | 140.000x 300.000x 62.000 |
| NJ328ema | 140.000x 300.000x 62.000 |
| Nu2328ema | 140.000 x300.000x 102.000 |
| NJ2328ema | 140.000x 300.000 x102.000 |
| NU1030MA | 150.000x 225.000x 35.000 |
| Nu230ema | 150.000x 270.000x 45.000 |
| NJ230ema | 150.000 x270.000 x45.000 |
| Nup230ema | 150.000 x270.000x 45.000 |
| Nu2230ema | 150.000x 270.000 x73.000 |
| NJ2230ema | 150.000x 270.000x73.000 |
| N2230emb | 150.000x 270.000x 73.000 |
| Nu330ema | 150.000 x320.000x 65.000 |
| NJ330ema | 150.000x 320.000x 65.000 |
| Nu2330ema | 150.000x 320.000x 108.000 |
| NJ2330ema | 150.000x 320.000 x108.000 |
| NU1032MA | 160.000 x240.000 x38.000 |
| Nu232ema | 160.000 x290.000x 48.000 |
| NJ232ema | 160.000 x290.000x 48.000 |
| Nup232ema | 160.000x 290.000 x48.000 |
| Nu2232ema | 160.000x 290.000 x80.000 |
| NJ2232ema | 160.000x 290.000x 80.000 |
| Nu332ema | 160.000x 340.000x 68.000 |
| NJ332ema | 160.000 x340.000x 68.000 |
| Nu2332ema | 160.000x 340.000 x114.000 |
| NJ2332ema | 160.000 x340.000 x114.000 |
| NU1034MA | 170.000 x260.000 x42.000 |
| Nu3034ema | 170.000 x260.000x 67.000 |
| Nu234ema | 170.000 x310.000x 52.000 |
| NJ234ema | 170.000 x310.000 x52.000 |
| Nu2234ema | 170.000x 310.000x 86.000 |
| NJ2234ema | 170.000 x310.000x 86.000 |
| Nu334ema | 170.000x 360.000 x72.000 |
| NJ334ema | 170.000x 360.000x 72.000 |
| Nu2334ema | 170.000x 360.000 x120.000 |
| NJ2334ema | 170.000 x360.000x 120.000 |
| Nu1036ma | 180.000x 280.000x 46.000 |
| Nu236ema | 180.000 x320.000 x52.000 |
| NJ236ema | 180.000x 320.000x 52.000 |
| Nu2236ema | 180.000x 320.000x 86.000 |
| NJ2236ema | 180.000 x320.000 x86.000 |
| Nu336ema | 180.000x 380.000x 75.000 |
| NJ336ema | 180.000 x380.000x 75.000 |
| Nu2336ema | 180.000x 380.000 x126.000 |
| NJ2336ema | 180.000x 380.000 x126.000 |
| NU1038MA | 190.000x 290.000x 46.000 |
| Nu238ema | 190.000x 340.000x 55.000 |
| NJ238ema | 190.000x 340.000x 55.000 |
| Nu2238ema | 190.000x 340.000x 92.000 |
| NJ2238ema | 190.000 x340.000x 92.000 |
| Nu338ema | 190.000x 400.000 x78.000 |
| NJ338ema | 190.000 x400.000x 78.000 |
| Nu2338ema | 190.000x 400.000x 132.000 |
| NJ2338ema | 190.000x 400.000x 132.000 |
| NU1040MA | 200.000 x310.000 x51.000 |
| Nu240ema | 200.000x 360.000 x58.000 |
| NJ240ema | 200.000x 360.000 x58.000 |
| Nu2240ema | 200.000 x360.000 98.000 |
| NJ2240ema | 200.000x 360.000x 98.000 |
| Nu340ema | 200.000 x420.000x 80.000 |
| NJ340ema | 200.000x 420.000x 80.000 |
| Nu2340ema | 200.000 x420.000 x138.000 |
| NJ2340ema | 200.000x 420.000 x138.000 |
| NU1044MA | 220.000 x340.000x 56.000 |
| NJ1044MA | 220.000 340.000 56.000 |
| Nu3044ema | 220.000x 340.000x 90.000 |
| Nu244ema | 220.000 x400.000x 65.000 |
| NJ244ema | 220.000x 400.000x 65.000 |
| Nu2244ema | 220.000x 400.000 x108.000 |
| NJ2244ema | 220.000 x400.000 x108.000 |
| Nu344ema | 220.000 x460.000 x88.000 |
| NJ344ema | 220.000 x460.000 x88.000 |
| Nu2344ema | 220.000 x460.000 x145.000 |
| NJ2344ema | 220.000x 460.000x 145.000 |
| N2344emb | 220.000 x460.000 x145.000 |
| NU1048MA | 240.000 x360.000x 56.000 |
| Nu248ema | 240.000x 440.000x 72.000 |
| NJ248ema | 240.000x 440.000x 72.000 |
| Nu348ema | 240.000x 500.000 x95.000 |
| NJ348ema | 240.000 x500.000x 95.000 |
| Nu2348ema | 240.000x 500.000 x155.000 |
| NJ2348ema | 240.000 x500.000x 155.000 |
| NU1052MA | 260.000x 400.000x 65.000 |
| Nu3052ma | 260.000x 400.000x 104.000 |
| Nu252ma | 260.000x 480.000x 80.000 |
| Nup252ma | 260.000x 480.000x 80.000 |
| Nu2252ma | 260.000x 480.000 x130.000 |
| Nu2352ema | 260.000x 540.000x 165.000 |
| NU1056MA | 280.000x 420.000 x65.000 |
| Nu1060mA | 300.000 x460.000 x74.000 |
| NU1964MA | 320.000 x440.000 x56.000 |
| Nf2964emb | 320.000x 440.000 x72.000 |
| NU1064MA | 320.000 x480.000x 74.000 |
| NU2264MA | 320.000 x580.000x 150.000 |
| Nu1068ma | 340.000x 520.000 x82.000 |
| Nu3068ema | 340.000x 520.000x 133.000 |
| Nu3168ema | 340.000 x580.000x 190.000 |
| Nu2372ema | 360.000x 750.000x 224.000 |
| Nu1072ma | 360.000 x540.000x 82.000 |
| NU1076MA | 380.000 x560.000 x82.000 |
| NJ2980ema | 400.000 x540.000x 82.000 |
| Nu1080mA | 400.000x 600.000x 90.000 |
| Nu2080ema | 400.000x 600.000 x118.000 |
| Nf2984emb | 420.000x 560.000x 82.000 |
| NU1088MA | 440.000x 650.000x 94.000 |
| Nu2088ema | 440.000 x650.000 x122.000 |
| Nu3188ema | 440.000x 720.000x 226.000 |
| NJ2892ema | 460.000 x580.000x 72.000 |
| Nf2992emb | 460.000x 620.000x 95.000 |
| Nu3192ema | 460.000 x760.000x 240.000 |
| Nu1096ema | 480.000x 700.000x 100.000 |
| NJ1096ema | 480.000 x700.000x 100.000 |
| NU31/500ema | 500.000x 830.000x 264.000 |
| NU18/560mA | 560.000 x680.000x 56.000 |
| Nu30/600ema | 600.000 x870.000 x200.000 |
| Nu20/630ema | 630.000x 920.000x 170.000 |
| Nu20/670ema | 670.000x 980.000x 180.000 |
| Nu30/670ema | 670.000x 980.000x 230.000 |
| NJ28/710ema | 710.000x 870.000x 95.000 |
| NJ29/710MA | 710.000x 950.000x 140.000 |
| Nu20/750ema | 750.000x 1090.000 x195.000 |
| Nu20/800ema | 800.000 x1150.000x 200.000 |
| NU20/850ema | 850.000 x1220.000x 212.000 |
| Nu20/900ema | 900.000x 1280.000x 218.000 |
| NJ18/1120ema | 1120.000x 1360.000 x106.000 |
