Ar gael 23980-BK-MB - Glud Rholer Spherical Gyda'r Asen Ganolog
Trosolwg
Tapr 1:12; turio silindrog; Gydag asen ganolog; Y prif faint fel a ganlyn : Diamedr tyllu -400 mm; Diamedr allanol-540 mm; Lled-106 mm; Màs-68.2 kg;Cr=1830 kN;C0r=4150 kN;Cyfyngu ar gyflymder=900 mun–1
Manyleb

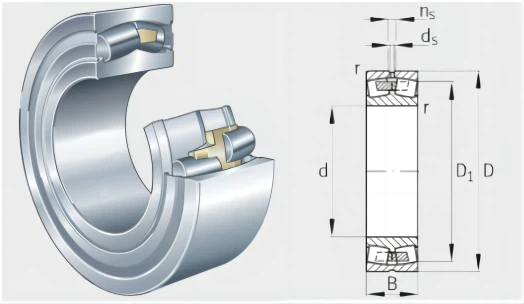

| Dimensiynau a Data Technegol | |
| Rhan RHIF. | 23980-BK-MB - Bearings Rholer Spherical |
| Brand | Brand FAG wedi'i wneud yn ALMAEN |
| Prif Dimensiynau | 400x540x106 mm |
| d | 400 mm |
| D | 540 mm |
| B | 106 mm |
| Rmin. | 4 mm |
| D1 | 499 mm |
| Da mun. | 414% 2c6 mm |
| Da max. | 525.4 mm |
| RA Max. | 3 mm |
| Cr | 1830 kN |
| C0r | 4 150 kN |
| M | 68.2 kg |
Ar gael Math tebyg
| Dynodiad | Dylunio | Offeren m(kg) |
Dimensiynau(mm) | ||||||
| d | D | B | 「 min. |
D₁ A |
ds | Ns | |||
| 23880-MB | 2 | 35.2 | 400 | 500 | 75 | 21 | 471 | 63 | 122 |
| 23880-K-MB | 2 | 436 | 400 | 500 | 75 | 21 | 471 | 63 | 122 |
| 24880-BK30-MB | 2 | 168 | 400 | 500 | 100 | 21 | 4,685 | 63 | 122 |
| 24880-B-MB | 2 | 168 | 400 | 500 | 100 | 21 | 4,685 | 63 | 122 |
| 23980-BK-MB | 2 | 682 | 400 | 540 | 106 | 4 | 499 | 95 | 177 |
| 23980-B-MB | 2 | 729 | 400 | 540 | 106 | 4 | 499 | 95 | 177 |
| 24980-BK30-MB | 2 | 957 | 400 | 540 | 140 | 4 | 4,946 | 63 | 122 |
| 24980-B-MB | 2 | 957 | 400 | 540 | 140 | 4 | 4,946 | 63 | 122 |
| 23080-K-MB | 2 | 143 | 400 | 600 | 148 | 5 | 5,405 | 125 | 235 |
| 23080-MB | 2 | 151 | 400 | 600 | 148 | 5 | 5,405 | 125 | 235 |
| 24080-BK30-MB | 2 | 196 | 400 | 600 | 200 | 5 | 5,309 | 125 | 235 |
| 24080-B-MB | 2 | 198 | 400 | 600 | 200 | 5 | 5,309 | 125 | 235 |
| 23180-BK-MB | 2 | 261 | 400 | 650 | 200 | 6 | 5,672 | 125 | 235 |
| 23180-B-MB | 2 | 270 | 400 | 650 | 200 | 6 | 5,672 | 125 | 235 |
| 24180-B-K30 | 2 | 312 | 400 | 650 | 250 | 6 | 5,535 | 125 | 235 |
| 24180-B | 2 | 326 | 400 | 650 | 250 | 6 | 5,535 | 125 | 235 |
| 22280-MB | 2 | 329 | 400 | 720 | 185 | 6 | 6,293 | 125 | 235 |
| 22280-K-MB | 2 | 414 | 400 | 720 | 185 | 6 | 6,293 | 125 | 235 |
| 23280-BK-MB | 2 | 442 | 400 | 720 | 256 | 6 | 6,098 | 125 | 235 |
| 23280-B-MB | 2 | 469 | 400 | 720 | 256 | 6 | 6,098 | 125 | 23.5 |
| 22380-MB | 2 | 627 | 400 | 820 | 243 | 75 | 6,944 | 125 | 235 |
| 22380-K-MB | 2 | 800 | 400 | 820 | 243 | 75 | 6,944 | 125 | 235 |
| 23884-MB | 2 | 363 | 420 | 520 | 75 | 21 | 4,913 | 63 | 122 |
| 23884-K-MB | 2 | 363 | 420 | 520 | 75 | 21 | 4,913 | 63 | 122 |
| {{0}K}K30-MB | 2 | 479 | 420 | 520 | 100 | 21 | 4,889 | 63 | 122 |
| 24884-MB | 2 | 479 | 420 | 520 | 100 | 21 | 4,889 | 63 | 122 |
| 23984-MB | 2 | 755 | 420 | 560 | 106 | 4 | 5,195 | 95 | 177 |
| 23984-K-MB | 2 | 78 | 420 | 560 | 106 | 4 | 5,195 | 95 | 177 |
| 24984-BK30-MB | 2 | 101 | 420 | 560 | 140 | 4 | 5,168 | 63 | 122 |
| 24984-B-MB | 2 | 101 | 420 | 560 | 140 | 4 | 5,168 | 63 | 122 |
| 23084-BK-MB | 2 | 155 | 420 | 620 | 150 | 5 | 5,607 | 125 | 235 |
| 23084-B-MB | 2 | 162 | 420 | 620 | 150 | 5 | 5,607 | 125 | 235 |
| 24084-BK30-MB | 2 | 214 | 420 | 620 | 200 | 5 | 5,502 | 125 | 235 |
| 24084-B-MB | 2 | 217 | 420 | 620 | 200 | 5 | 5,502 | 125 | 235 |
